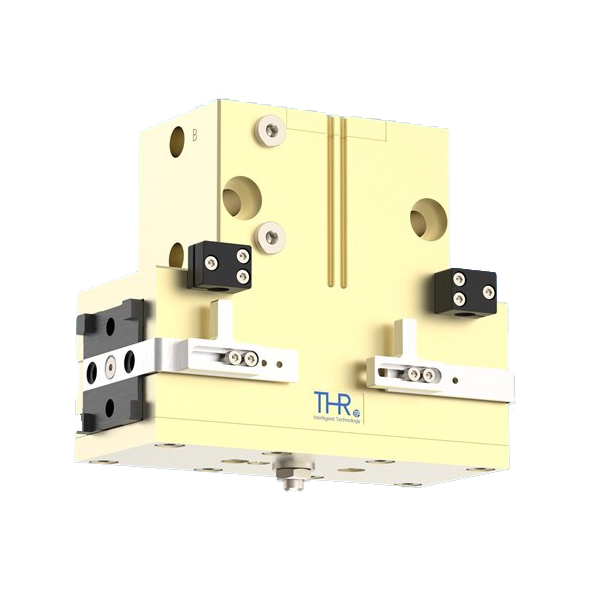

2 Jaw Parallel Gripper, Step-less Stroke Adjustment THP
Step-less continuously adjustable stroke with square rail guidance for high retention force and torque capacity. Large gripping stroke in a compact size, -AS gripping force maintenance available.
Step-less (continuously adjustable) stroke
Square rail for high retention force and torque
Large stroke in a compact overall size
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance
1. Step-less (continuously adjustable) stroke for flexible gripping of different workpiece sizes.
2. Square rail guidance delivers high retention force and torque capacity.
3. Large gripping stroke while keeping a compact overall size.
4. Variety of air interfaces and multiple mounting options.
Gripping force maintenance -AS
The THP grippers can be equipped with gripping force maintenance (-AS: closing maintenance). The spring is used as the holding accumulator, ensuring a minimum clamping force in the event of a pressure drop.
Model and Technical Parameters
| Type | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| THP-224-1 | 12 | 160/165 | 0.45 | 0.8 | 0.04/0.04 | 0.05 | 40 | |
| THP-224-1-AS | 12 | 170/- | 10 | 0.52 | 0.8 | 0.04/0.06 | 0.05 | 40 |
| THP-224-2 | 6 | 340/350 | 0.45 | 1.7 | 0.04/0.04 | 0.05 | 40 | |
| THP-224-2-AS | 6 | 370/- | 30 | 0.52 | 1.7 | 0.04/0.06 | 0.05 | 40 |
| THP-240-1 | 20 | 440/450 | 1.2 | 2.2 | 0.08/0.08 | 0.05 | 40 | |
| THP-240-1-AS | 20 | 515/- | 75 | 1.3 | 2.2 | 0.08/0.10 | 0.05 | 40 |
| THP-240-2 | 8 | 1110/1130 | 1.2 | 5.5 | 0.08/0.08 | 0.05 | 40 | |
| THP-240-2-AS | 8 | 1300/- | 190 | 1.3 | 5.5 | 0.08/0.10 | 0.05 | 40 |
| THP-260-1 | 30 | 675/700 | 2.9 | 3.3 | 0.10/0.10 | 0.05 | 40 | |
| THP-260-1-AS | 30 | 810/- | 135 | 3.0 | 3.3 | 0.10/0.15 | 0.05 | 40 |
| THP-260-2 | 10 | 2140/2200 | 2.9 | 10.7 | 0.10/0.10 | 0.05 | 40 | |
| THP-260-2-AS | 10 | 2500/- | 360 | 3.0 | 10.7 | 0.10/0.15 | 0.05 | 40 |
| THP-280-1 | 40 | 1400/1450 | 8.1 | 7 | 0.20/0.20 | 0.05 | 40 | |
| THP-280-1-AS | 40 | 1700/- | 300 | 8.3 | 7 | 0.20/0.25 | 0.05 | 40 |
| THP-280-2 | 15 | 3700/3800 | 8.1 | 18.5 | 0.20/0.20 | 0.05 | 40 | |
| THP-280-2-AS | 15 | 4500/- | 800 | 8.3 | 18.5 | 0.20/0.25 | 0.05 | 40 |
