2 Jaw Parallel Grippers, T-slot Guidance TWT
T-slot guidance, compact and reliable. Economical gripper with higher cost performance.
T-slot guidance, compact and reliable
Economical gripper with higher cost performance
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance
1. The TWT grippers adopt high precision, T-slot guidance, which are compact, reliable and cost-effective.
● T-slot guidance, compact and reliable
● Economical gripper with higher cost performance

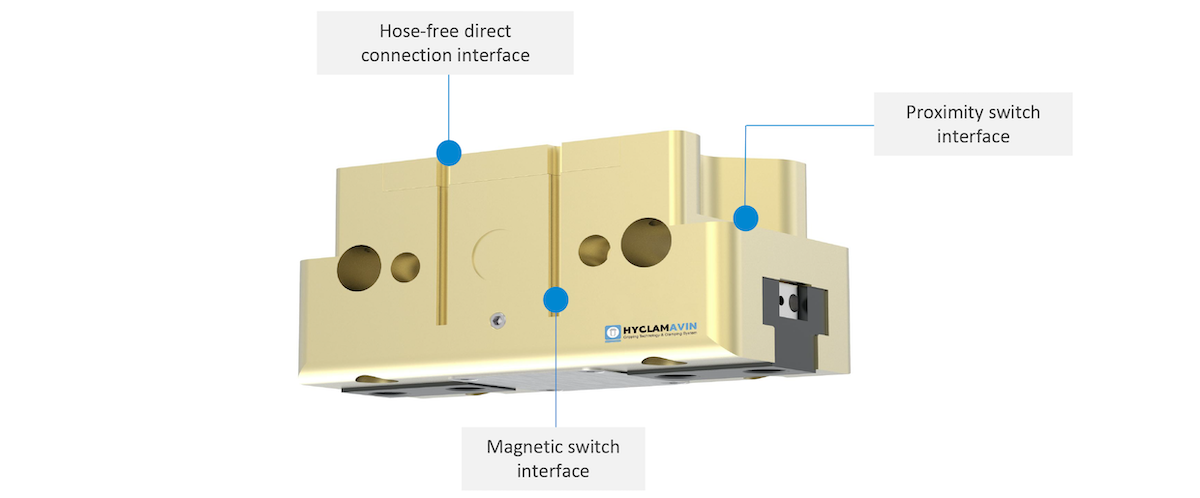

2. The TWT grippers have a variety of sensor interfaces and pneumatic interfaces .

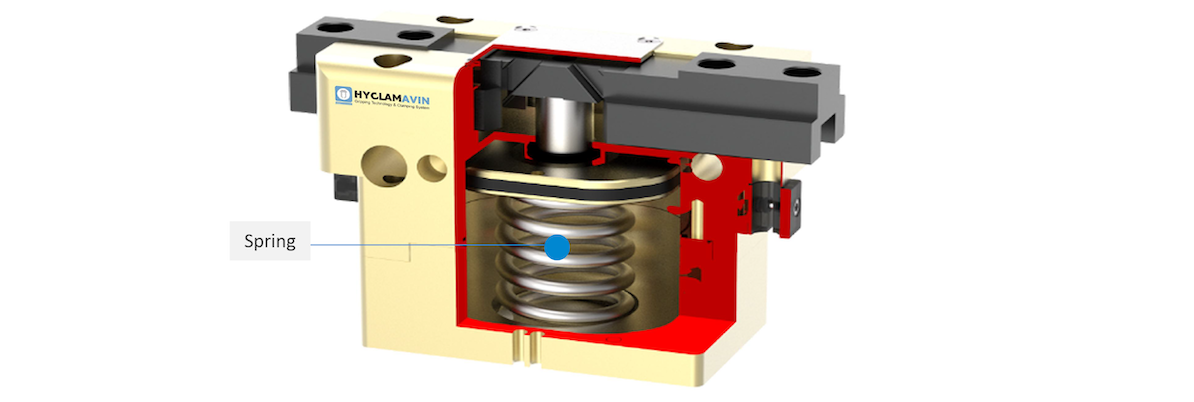

Gripping force maintenance-AS/IS
1. The TWT-P grippers can be equipped with gripping force maintenance, expanded to TWN-P- AS/IS(AS：closing maintenance, IS：opening maintenance ).
2. The spring is used as the holding accumulator, gripping force maintenance ensure a minimum
clamping force in the event of a pressure drop.

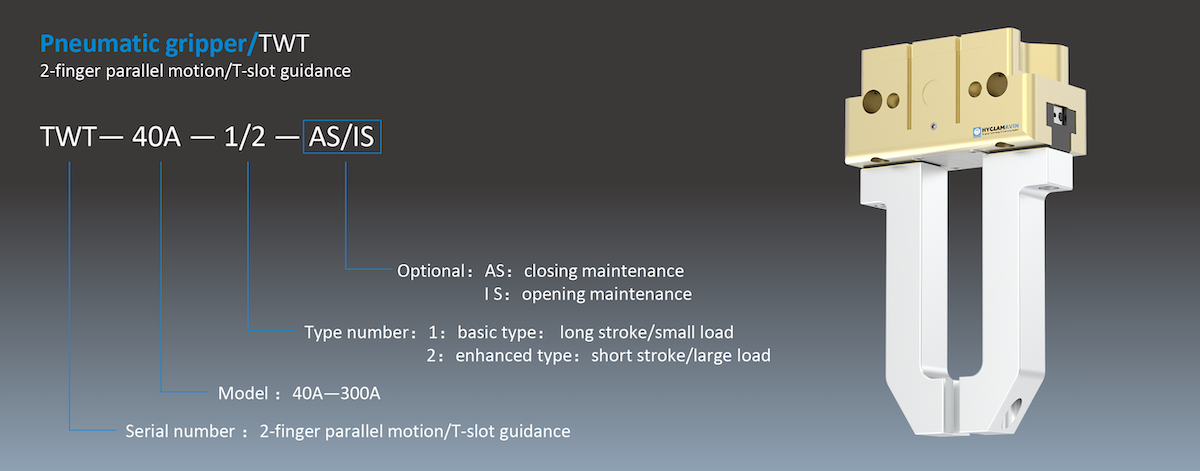

Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TWT-40A-1 | 2.5 | 130/140 | 0.08 | 0.65 | 0.02/0.02 | 0.01 | 40 | |
| TWT-40A-1-AS | 2.5 | 170/- | 40 | 0.1 | 0.65 | 0.02/0.03 | 0.01 | 40 |
| TWT-40A-1-IS | 2.5 | -/190 | 50 | 0.1 | 0.65 | 0.03/0.02 | 0.01 | 40 |
| TWT-50A-1 | 4 | 160/180 | 0.15 | 0.8 | 0.02/0.02 | 0.01 | 40 | |
| TWT-50A-1-AS | 4 | 205/- | 45 | 0.21 | 0.8 | 0.02/0.03 | 0.01 | 40 |
| TWT-50A-1-IS | 4 | -/225 | 45 | 0.21 | 0.8 | 0.03/0.02 | 0.01 | 40 |
| TWT-50A-2 | 2 | 330/370 | 0.15 | 1.65 | 0.02/0.02 | 0.01 | 40 | |
| TWT-50A-2-AS | 2 | 425/- | 95 | 0.21 | 1.65 | 0.02/0.03 | 0.01 | 40 |
| TWT-50A-2-IS | 2 | -/465 | 95 | 0.21 | 1.65 | 0.03/0.02 | 0.01 | 40 |
| TWT-64A-1 | 6 | 270/300 | 0.27 | 1.35 | 0.03/0.03 | 0.01 | 40 | |
| TWT-64A-1-AS | 6 | 360/- | 90 | 0.37 | 1.35 | 0.02/0.04 | 0.01 | 40 |
| TWT-64A-1-IS | 6 | -/390 | 90 | 0.37 | 1.35 | 0.04/0.02 | 0.01 | 40 |
| TWT-64A-2 | 3 | 560/620 | 0.27 | 2.8 | 0.03/0.03 | 0.01 | 40 | |
| TWT-64A-2-AS | 3 | 750/- | 190 | 0.37 | 2.8 | 0.02/0.04 | 0.01 | 40 |
| TWT-64A-2-IS | 3 | -/810 | 190 | 0.37 | 2.8 | 0.04/0.02 | 0.01 | 40 |
| TWT-80A-1 | 8 | 360/430 | 0.5 | 1.8 | 0.04/0.04 | 0.01 | 40 | |
| TWT-80A-1-AS | 8 | 515/- | 155 | 0.6 | 1.8 | 0.03/0.05 | 0.01 | 40 |
| TWT-80A-1-IS | 8 | -/585 | 155 | 0.6 | 1.8 | 0.05/0.03 | 0.01 | 40 |
| TWT-80A-2 | 4 | 745/890 | 0.5 | 3.72 | 0.04/0.04 | 0.01 | 40 | |
| TWT-80A-2-AS | 4 | 1065/- | 320 | 0.6 | 3.72 | 0.03/0.05 | 0.01 | 40 |
| TWT-80A-2-IS | 4 | -/1210 | 320 | 0.6 | 3.72 | 0.05/0.03 | 0.01 | 40 |
| TWT-100A-1 | 10 | 690/750 | 0.81 | 3.45 | 0.07/0.07 | 0.01 | 40 | |
| TWT-100A-1-AS | 10 | 930/- | 240 | 1 | 3.45 | 0.05/0.09 | 0.01 | 40 |
| TWT-100A-1-IS | 10 | -/990 | 240 | 1 | 3.45 | 0.09/0.05 | 0.01 | 40 |
| TWT-100A-2 | 5 | 1430/1550 | 0.81 | 7.15 | 0.07/0.07 | 0.01 | 40 | |
| TWT-100A-2-AS | 5 | 1930/- | 500 | 1 | 7.15 | 0.05/0.09 | 0.01 | 40 |
| TWT-100A-2-IS | 5 | -/2050 | 500 | 1 | 7.15 | 0.09/0.05 | 0.01 | 40 |
| TWT-110A-1 | 20 | 1050/1150 | 2 | 5.25 | 0.15/0.15 | 0.01 | 40 | |
| TWT-125A-1 | 13 | 1250/1400 | 1.24 | 6.25 | 0.10/0.10 | 0.01 | 40 | |
| TWT-125A-1-AS | 13 | 1640/- | 390 | 1.85 | 6.25 | 0.08/0.12 | 0.01 | 40 |
| TWT-125A-1-IS | 13 | -/1790 | 390 | 1.85 | 6.25 | 0.12/0.08 | 0.01 | 40 |
| TWT-125A-2 | 6 | 2590/2900 | 1.24 | 12.95 | 0.10/0.10 | 0.01 | 40 | |
| TWT-125A-2-AS | 6 | 3390/- | 800 | 1.85 | 12.95 | 0.08/0.12 | 0.01 | 40 |
| TWT-125A-2-IS | 6 | -/3700 | 800 | 1.85 | 12.95 | 0.12/0.08 | 0.01 | 40 |
| TWT-160A-1 | 16 | 1710/1820 | 2.6 | 8.55 | 0.15/0.15 | 0.01 | 40 | |
| TWT-160A-1-AS | 16 | 2280/- | 570 | 3.6 | 8.55 | 0.12/0.25 | 0.01 | 40 |
| TWT-160A-1-IS | 16 | -/2390 | 570 | 3.6 | 8.55 | 0.25/0.12 | 0.01 | 40 |
| TWT-160A-2 | 8 | 3550/3780 | 2.6 | 17.75 | 0.15/0.15 | 0.01 | 40 | |
| TWT-160A-2-AS | 8 | 4770/- | 1220 | 3.6 | 17.75 | 0.12/0.25 | 0.01 | 40 |
| TWT-160A-2-IS | 8 | -/5000 | 1220 | 3.6 | 17.75 | 0.25/0.12 | 0.01 | 40 |
| TWT-200A-1 | 25 | 2810/2980 | 5 | 14 | 0.35/0.35 | 0.02 | 40 | |
| TWT-200A-1-AS | 25 | 3720/- | 910 | 7.5 | 14 | 0.30/0.60 | 0.02 | 40 |
| TWT-200A-1-IS | 25 | -/3890 | 910 | 7.5 | 14 | 0.60/0.30 | 0.02 | 40 |
| TWT-220A-1 | 16 | 3700/4000 | 3.9 | 18.5 | 0.16/0.16 | 0.02 | 40 | |
| TWT-240A-1 | 30 | 4500/4750 | 7.7 | 22.5 | 0.45/0.45 | 0.04 | 40 | |
| TWT-240A-1-AS | 30 | 5600/- | 1100 | 11.8 | 22.5 | 0.35/0.65 | 0.04 | 40 |
| TWT-240A-1-IS | 30 | -/5850 | 1100 | 11.8 | 22.5 | 0.65/0.35 | 0.04 | 40 |
| TWT-300A-1 | 35 | 6040/6330 | 13.5 | 30.2 | 0.50/0.50 | 0.05 | 40 | |
| TWT-300A-1-AS | 35 | 7440/- | 1400 | 17.2 | 30.2 | 0.40/0.70 | 0.05 | 40 |
| TWT-300A-1-IS | 35 | -/7730 | 1400 | 17.2 | 30.2 | 0.70/0.40 | 0.05 | 40 |
