Product details

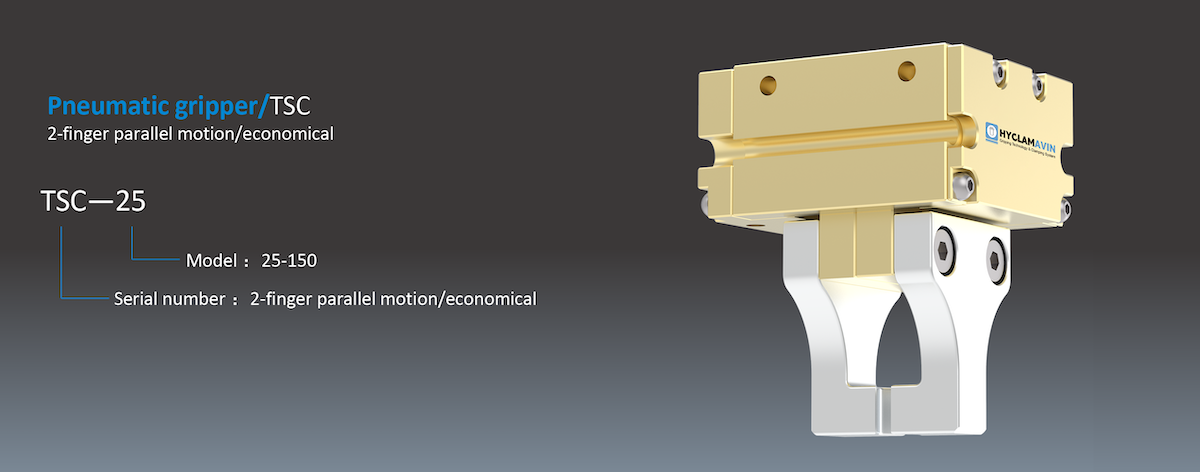

2 Jaw Pneumatic Gripper, Economical TYPE TSC
The body is made of high strength aluminum alloy, which is lighter and stronger. With six specifications, it is widely used for taking and placing of small parts. with a high price-performance ratio. Magnetic switch interface.
The body is made of high strength aluminum alloy, which is lighter and stronger
With six specifications, it is widely used for taking and placing of small parts
with high price-performance ratio
Magnetic switch interface
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance

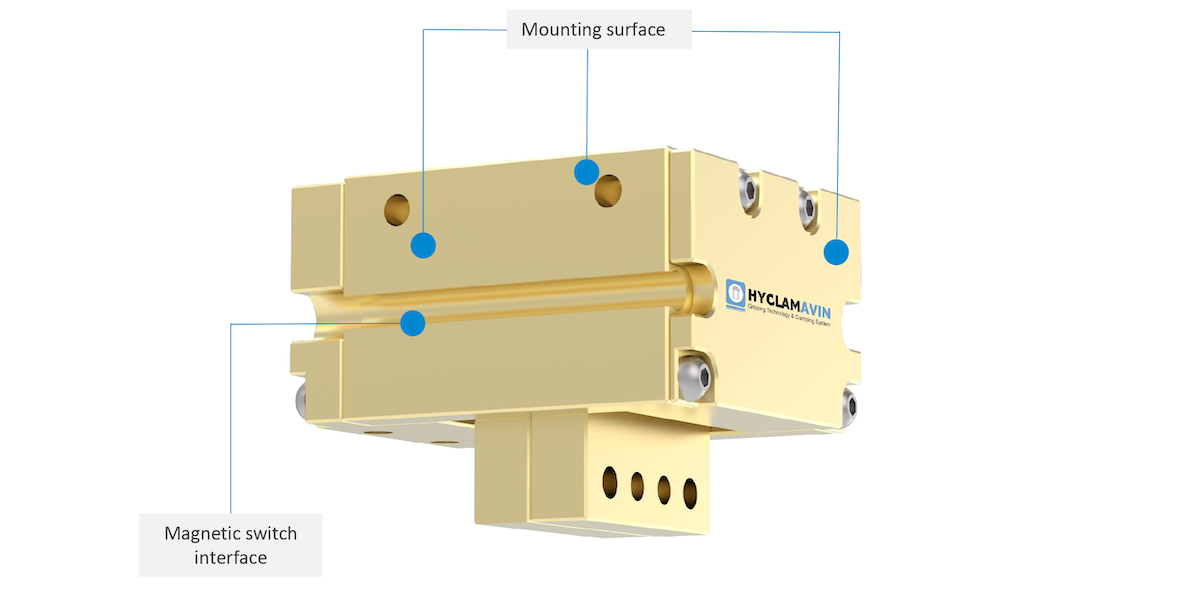

1. The TSC grippers have magnetic switch interface and multiple installation methods.
● The body is made of high strength aluminum alloy, which is lighter and stronger
● With six specifications, it is widely used for taking and placing of small parts
● with high price-performance ratio
● Magnetic switch interface
● Can be installed on three sides, flexible using
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TSC-25 | 2.5 | 16/16 | 0.05 | 0.08 | 0.03/0.03 | 0.02 | 30 |
| TSC-40 | 4 | 50/50 | 0.14 | 0.25 | 0.05/0.05 | 0.02 | 30 |
| TSC-75 | 7.5 | 110/110 | 0.20 | 0.55 | 0.06/0.06 | 0.02 | 30 |
| TSC-100 | 10 | 170/170 | 0.33 | 0.85 | 0.09/0.09 | 0.02 | 30 |
| TSC-120 | 12 | 240/240 | 0.53 | 1.2 | 0.10/0.10 | 0.02 | 30 |
| TSC-150 | 15 | 370/370 | 0.92 | 1.85 | 0.11/0.11 | 0.02 | 30 |
Selection resource
Compare models in the complete selection manual
Review ordering codes, dimensions and technical specifications for all 15 HYCLAMAVIN pneumatic gripper and robot tool changer families.
