Product details
Pneumatic 2 Finger Parallel Gripper, Multi-tooth TPG
Robust interior multi-tooth guidance can be used for heavy load. The load is distributed to more surfaces to reduce the contact stress. Lip seal at the outside round guidance for permanent, secure gripper sealing.
Pneumatic 2 Finger Parallel Gripper, Multi-tooth TPG
Robust interior multi-tooth guidance can be used for heavy load
The load is distributed to more surfaces to reduce the contact stress
Lip seal at the outside round guidance for permanent, secure gripper sealing
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance

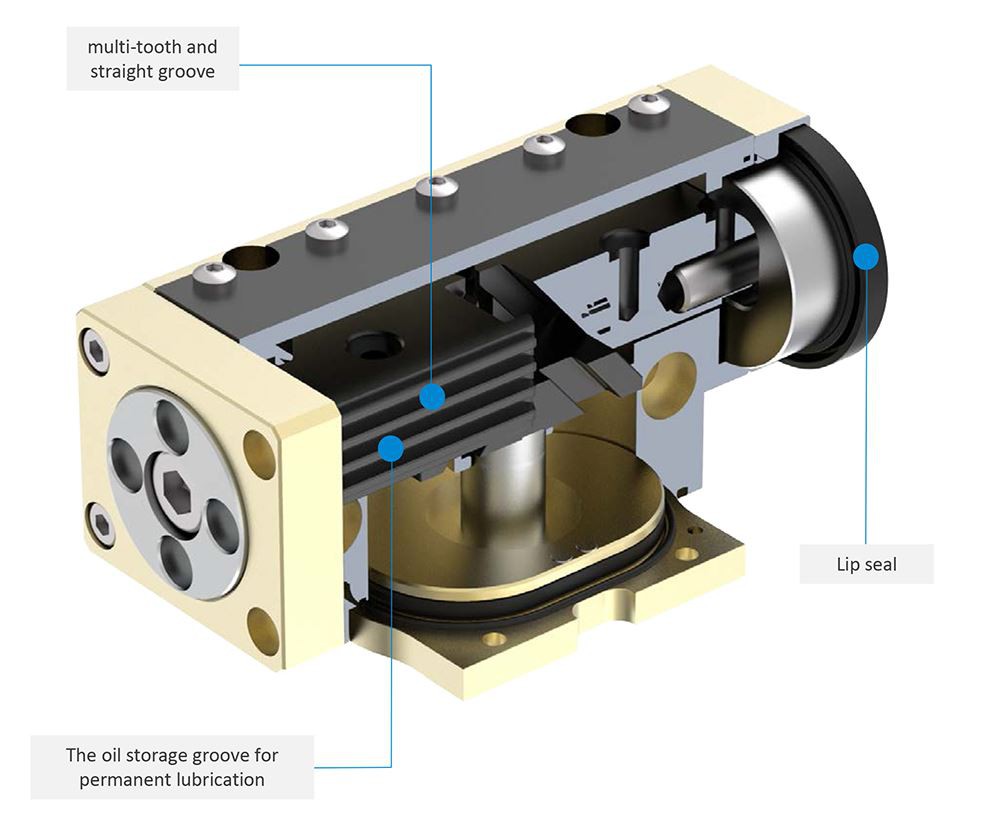

1. The TPG grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.
● Robust interior multi-tooth guidance can be used for heavy load
● The load is distributed to more surfaces to reduce the contact stress
● Lip seal at the outside round guidance for permanent, secure gripper sealing
● It can ensure enough motion rigidity and accuracy for a long time
● The oil storage structure in the multi tooth guide extends the service life
● The protection level of the TPG grippers reaches IP67

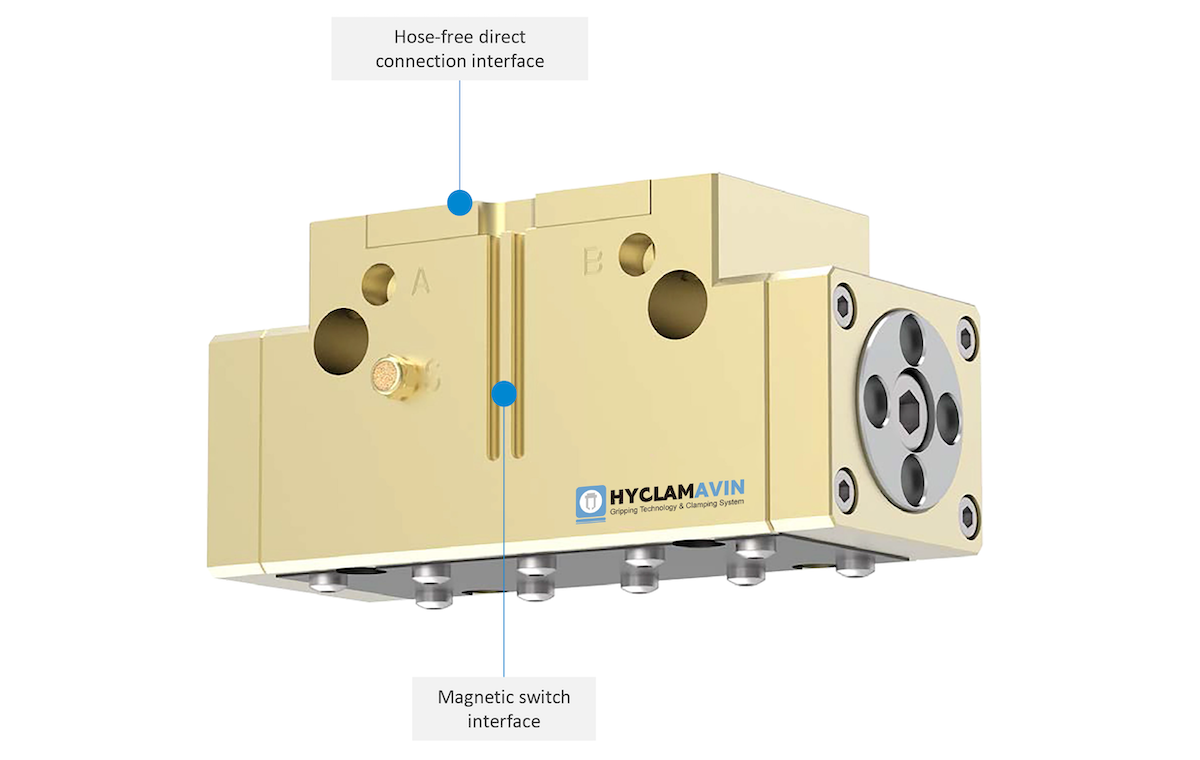

2. The TPG grippers have the magnetic switch interface and a variety of pneumatic interfaces.
3. The protection level of the TPG grippers reaches IP67.
High-temperature version-HT
The TPG grippers can be equipped with high temperature version, expanded to TPG-HT, the temperature tolerance range is increased from 5/90℃ of the basic version to 5/130℃.

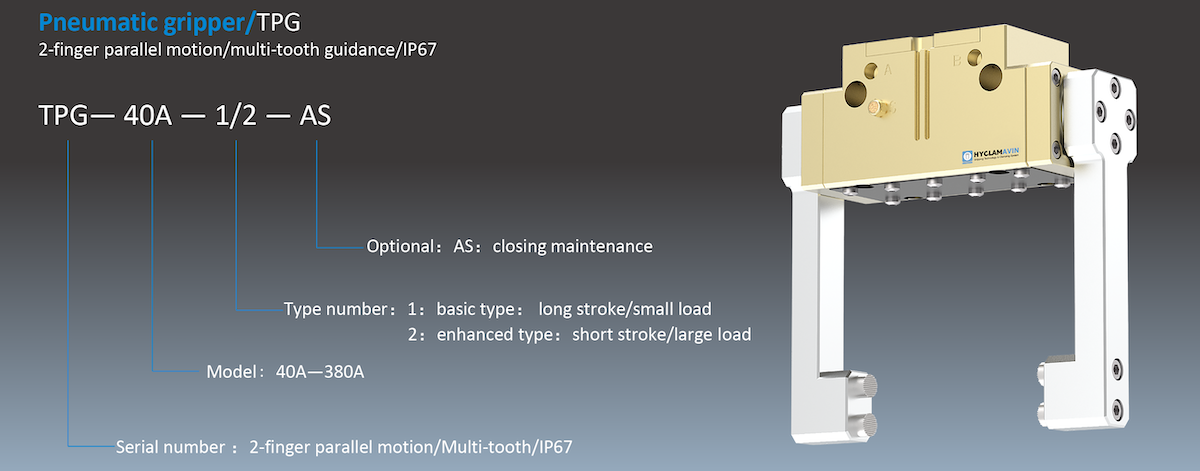

Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TPG-40A-1 | 2.5 | 130/140 | 0.12 | 0.65 | 0.03/0.03 | 0.01 | 67 | |
| TPG-40A-1-AS | 2.5 | 173/- | 43 | 0.14 | 0.65 | 0.03/0.05 | 0.01 | 67 |
| TPG-40A-1-IS | 2.5 | -/193 | 53 | 0.14 | 0.65 | 0.05/0.03 | 0.01 | 67 |
| TPG-50A-1 | 4 | 150/160 | 0.25 | 0.75 | 0.03/0.03 | 0.01 | 67 | |
| TPG-50A-1-AS | 4 | 198/- | 48 | 0.3 | 0.75 | 0.03/0.05 | 0.01 | 67 |
| TPG-50A-1-IS | 4 | -/208 | 48 | 0.3 | 0.75 | 0.05/0.03 | 0.01 | 67 |
| TPG-50A-2 | 2 | 308/330 | 0.25 | 1.54 | 0.03/0.03 | 0.01 | 67 | |
| TPG-50A-2-AS | 2 | 408/- | 100 | 0.3 | 1.54 | 0.03/0.05 | 0.01 | 67 |
| TPG-50A-2-IS | 2 | -/430 | 100 | 0.3 | 1.54 | 0.05/0.03 | 0.01 | 67 |
| TPG-64A-1 | 6 | 262/285 | 0.39 | 1.31 | 0.04/0.04 | 0.01 | 67 | |
| TPG-64A-1-AS | 6 | 360/- | 98 | 0.46 | 1.31 | 0.03/0.06 | 0.01 | 67 |
| TPG-64A-1-IS | 6 | -/383 | 98 | 0.46 | 1.31 | 0.06/0.03 | 0.01 | 67 |
| TPG-64A-2 | 3 | 540/590 | 0.39 | 2.7 | 0.04/0.04 | 0.01 | 67 | |
| TPG-64A-2-AS | 3 | 740/- | 200 | 0.46 | 2.7 | 0.03/0.06 | 0.01 | 67 |
| TPG-64A-2-IS | 3 | -/790 | 200 | 0.46 | 2.7 | 0.06/0.03 | 0.01 | 67 |
| TPG-80A-1 | 8 | 438/488 | 0.68 | 2.19 | 0.05/0.05 | 0.01 | 67 | |
| TPG-80A-1-AS | 8 | 594/- | 156 | 0.8 | 2.19 | 0.04/0.07 | 0.01 | 67 |
| TPG-80A-1-IS | 8 | -/644 | 156 | 0.8 | 2.19 | 0.07/0.04 | 0.01 | 67 |
| TPG-80A-2 | 4 | 900/1010 | 0.68 | 4.5 | 0.05/0.05 | 0.01 | 67 | |
| TPG-80A-2-AS | 4 | 1230/- | 330 | 0.8 | 4.5 | 0.04/0.07 | 0.01 | 67 |
| TPG-80A-2-IS | 4 | -/1340 | 330 | 0.8 | 4.5 | 0.07/0.04 | 0.01 | 67 |
| TPG-100A-1 | 10 | 732/805 | 1.1 | 3.66 | 0.09/0.09 | 0.01 | 67 | |
| TPG-100A-1-AS | 10 | 997/- | 265 | 1.35 | 3.66 | 0.07/0.12 | 0.01 | 67 |
| TPG-100A-1-IS | 10 | -/1070 | 265 | 1.35 | 3.66 | 0.12/0.07 | 0.01 | 67 |
| TPG-100A-2 | 5 | 1520/1670 | 1.1 | 7.6 | 0.09/0.09 | 0.01 | 67 | |
| TPG-100A-2-AS | 5 | 2065/- | 545 | 1.35 | 7.6 | 0.07/0.12 | 0.01 | 67 |
| TPG-100A-2-IS | 5 | -/2215 | 450 | 1.35 | 7.6 | 0.12/0.07 | 0.01 | 67 |
| TPG-125A-1 | 13 | 1200/1300 | 1.9 | 6 | 0.13/0.13 | 0.01 | 67 | |
| TPG-125A-1-AS | 13 | 1640/- | 440 | 2.35 | 6 | 0.11/0.16 | 0.01 | 67 |
| TWN-125A-1-IS | 13 | -/1740 | 440 | 2.35 | 6 | 0.16/0.11 | 0.01 | 67 |
| TPG-125A-2 | 6 | 2480/2685 | 1.9 | 12.4 | 0.13/0.13 | 0.01 | 67 | |
| TPG-125A-2-AS | 6 | 3380/- | 900 | 2.35 | 12.4 | 0.11/0.16 | 0.01 | 67 |
| TPG-125A-2-IS | 6 | -/3585 | 900 | 2.35 | 12.4 | 0.16/0.11 | 0.01 | 67 |
| TPG-160A-1 | 16 | 1810/1960 | 3.65 | 9.05 | 0.19/0.19 | 0.01 | 67 | |
| TPG-160A-1-AS | 16 | 2410/- | 600 | 4.65 | 9.05 | 0.16/0.33 | 0.01 | 67 |
| TPG-160A-1-IS | 16 | -/2560 | 600 | 4.65 | 9.05 | 0.33/0.16 | 0.01 | 67 |
| TPG-160A-2 | 8 | 3515/3810 | 3.65 | 17.57 | 0.19/0.19 | 0.01 | 67 | |
| TPG-160A-2-AS | 8 | 4990/- | 1475 | 4.65 | 17.57 | 0.16/0.33 | 0.01 | 67 |
| TPG-160A-2-IS | 8 | -/5285 | 1475 | 4.65 | 17.57 | 0.33/0.16 | 0.01 | 67 |
| TPG-200A-1 | 25 | 2900/3100 | 7.3 | 14.5 | 0.45/0.45 | 0.02 | 67 | |
| TPG-200A-1-AS | 25 | 3890/- | 990 | 9.5 | 14.5 | 0.40/0.80 | 0.02 | 67 |
| TPG-200A-1-IS | 25 | -/4290 | 1190 | 9.5 | 14.5 | 0.80/0.40 | 0.02 | 67 |
| TPG-200A-2 | 14 | 5000/5620 | 7.3 | 25 | 0.45/0.45 | 0.02 | 67 | |
| TPG-200A-2-AS | 14 | 6710/- | 1710 | 9.5 | 25 | 0.40/0.80 | 0.02 | 67 |
| TPG-200A-2-IS | 14 | -/7680 | 2060 | 9.5 | 25 | 0.80/0.40 | 0.02 | 67 |
| TPG-240A-1 | 30 | 3930/4150 | 11.5 | 19.65 | 0.60/0.60 | 0.04 | 67 | |
| TPG-240A-1-AS | 30 | 4920/- | 990 | 14.6 | 19.65 | 0.50/1.00 | 0.04 | 67 |
| TPG-240A-1-IS | 30 | -/5140 | 990 | 14.6 | 19.65 | 1.00/0.50 | 0.04 | 67 |
| TPG-240A-2 | 17 | 6120/6460 | 11.5 | 30.6 | 0.60/0.60 | 0.04 | 67 | |
| TPG-240A-2-AS | 17 | 7780/- | 1660 | 14.6 | 30.6 | 0.50/1.00 | 0.04 | 67 |
| TPG-240A-2-IS | 17 | -/8120 | 1660 | 14.6 | 30.6 | 1.00/0.50 | 0.04 | 67 |
| TPG-300A-1 | 35 | 5640/5870 | 19.6 | 28.2 | 0.70/0.70 | 0.05 | 67 | |
| TPG-300A-1-AS | 35 | 6940/- | 1300 | 23.6 | 28.2 | 0.60/1.00 | 0.05 | 67 |
| TPG-300A-1-IS | 35 | -/7170 | 1300 | 23.6 | 28.2 | 1.00/0.60 | 0.05 | 67 |
| TPG-300A-2 | 20 | 9800/10300 | 19.6 | 49 | 0.70/0.70 | 0.05 | 67 | |
| TPG-300A-2-AS | 20 | 12000/- | 2200 | 23.6 | 49 | 0.60/1.00 | 0.05 | 67 |
| TPG-300A-2-IS | 20 | -/12500 | 2200 | 23.6 | 49 | 1.00/0.60 | 0.05 | 67 |
| TPG-380A-1 | 45 | 8430/8740 | 42 | 42.15 | 1.10/1.10 | 0.05 | 67 | |
| TPG-380A-1-AS | 45 | 11630/- | 3200 | 52 | 42.15 | 0.95/1.10 | 0.05 | 67 |
| TPG-380A-1-IS | 45 | -/11940 | 3200 | 52 | 42.15 | 1.10/0.95 | 0.05 | 67 |
