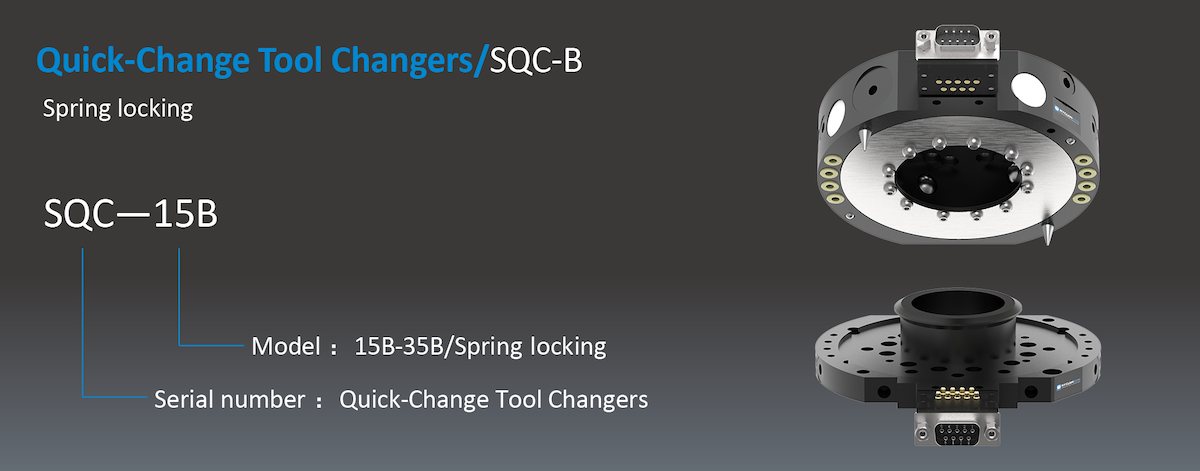

Robotic Automatic Tool Changer, Spring Locking SQC-B
SQC-B quick-change tool changers change tools automatically, which are spring locking and do not need air supply after locking.
SQC-B quick-change tool changers change tools automatically, which are spring locking and do not need air supply after locking
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance
1. SQC-B quick-change tool changers change tools automatically, which are spring locking and do not need air supply after locking.
● The working state (locking state) is in the gas cut-off state, and no need for gas supply, so it is very suitable for the occasions with low switching frequency, energy saving, safety, and no gas cut-off drop risk
● The housing material is aluminium alloy, and it has lighter weight; The surface is treated with special hardening treatment, which has excellent wear resistance and impact resistance

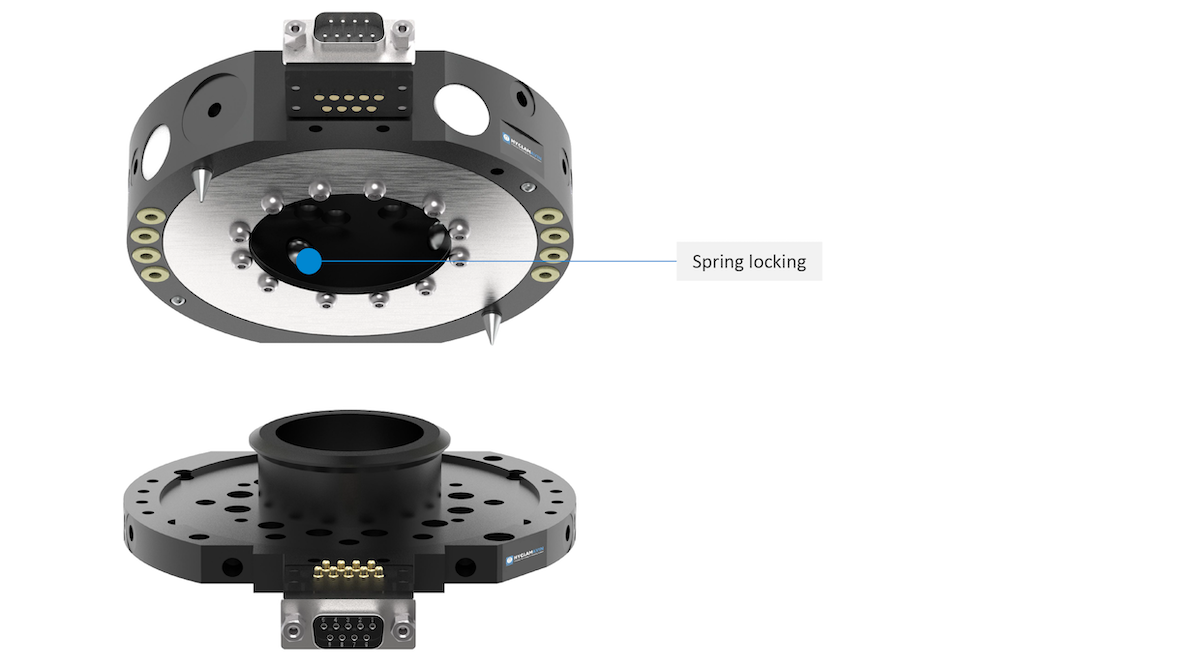

● The special ejection spring locking structure does not need continuous air supply after locking, so as to avoid tool plate falling off because of accidental gas breaking
● All locking parts are made of high strength and high hardness steel
● Tools changed in seconds for maintenance and repair, can reduce tool changing time
● Operator safety increased by changing tools automatically
Model and Technical Parameters
Model | Recommended handling weight[Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-15B | 20 | 1768 | 0.02 | 0.9 | 0.6 | 51 | 72 | 8-M5 |
| SQC-35B | 50 | 3730 | 0.02 | 3.2 | 1.6 | 155 | 216 | 8-G1/8″ |
