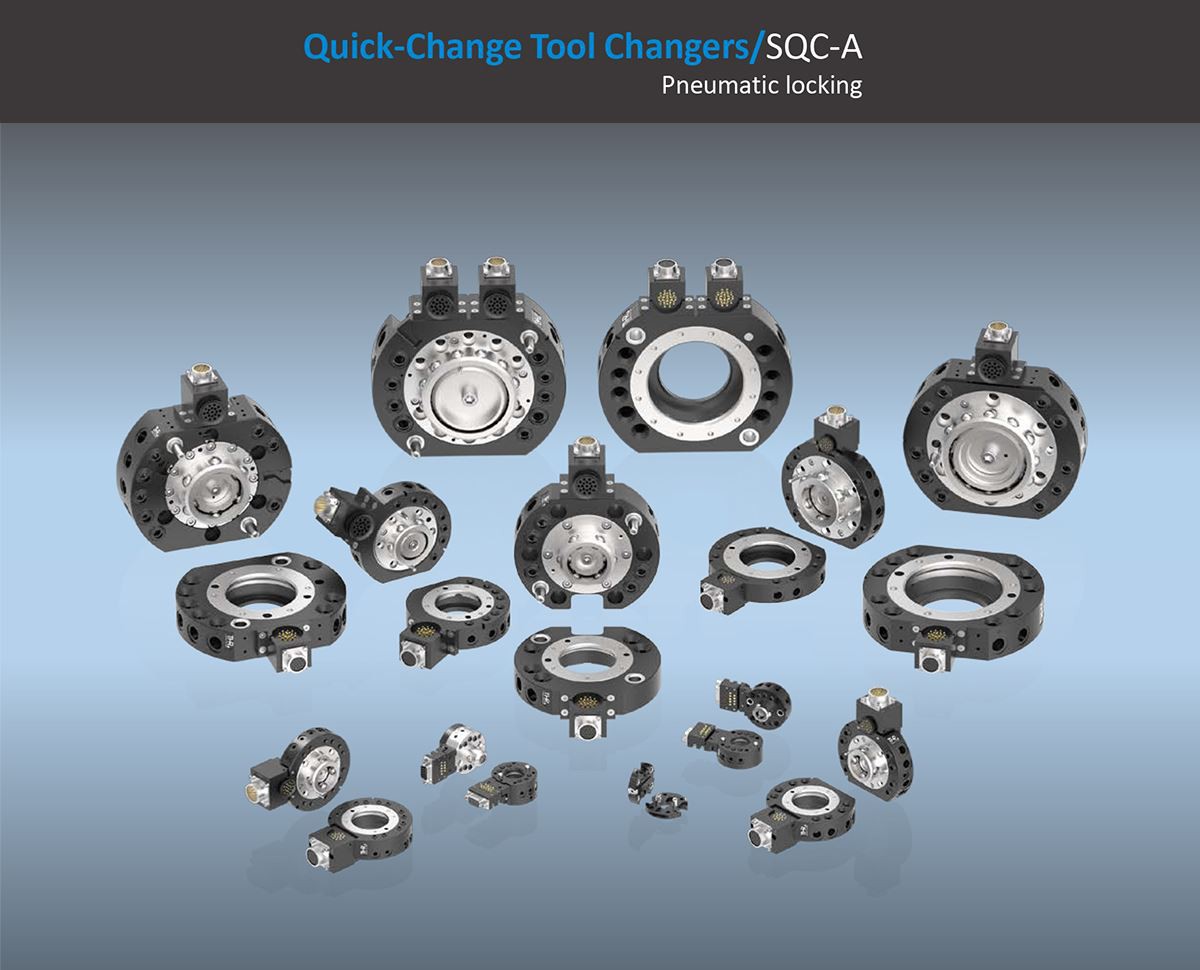

Robotic Tool Changer, Pneumatic Locking SQC-A
SQC-A quick-change tool changers change tools automatically, with failure protection mechanism to prevent gas cut-off and falling off.
Robotic Tool Changer, Pneumatic Locking SQC-A
SQC-A quick-change tool changers change tools automatically, with failure protection mechanism to prevent gas cut-off and falling off.
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance
1. SQC-A quick-change tool changers change tools automatically, with failure protection mechanism to prevent gas cut-off and falling off.
● Fail-Safe locking mechanism design results in low force acting on the piston, even if the gas is cut off, the tool plate will not break away
● A large piston diameter and an outside clamping locking increases the permissible moment capacity

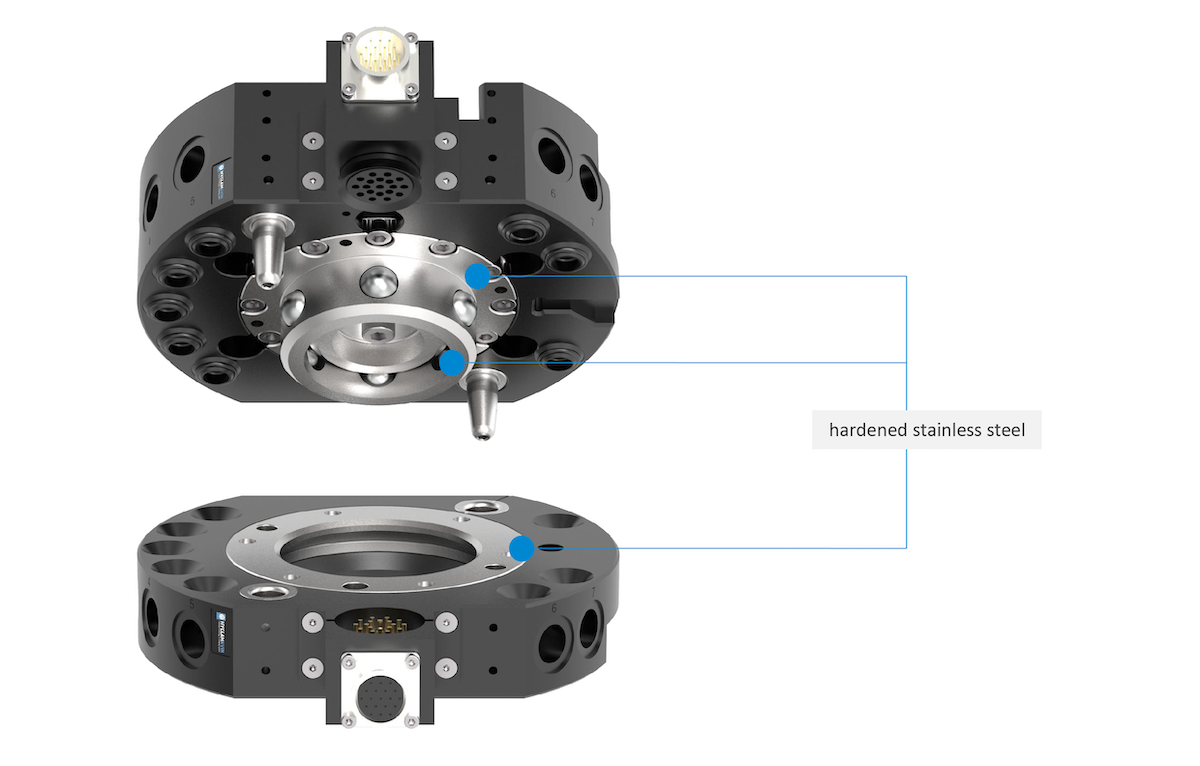

● All functional components made from hardened stainless steel
● Manual emergency unlocking possible no counter-forces from springs
● Tools changed in seconds for maintenance and repair can reduce tool changing time
● Operator safety increased by changing tools automatically
Optional spring

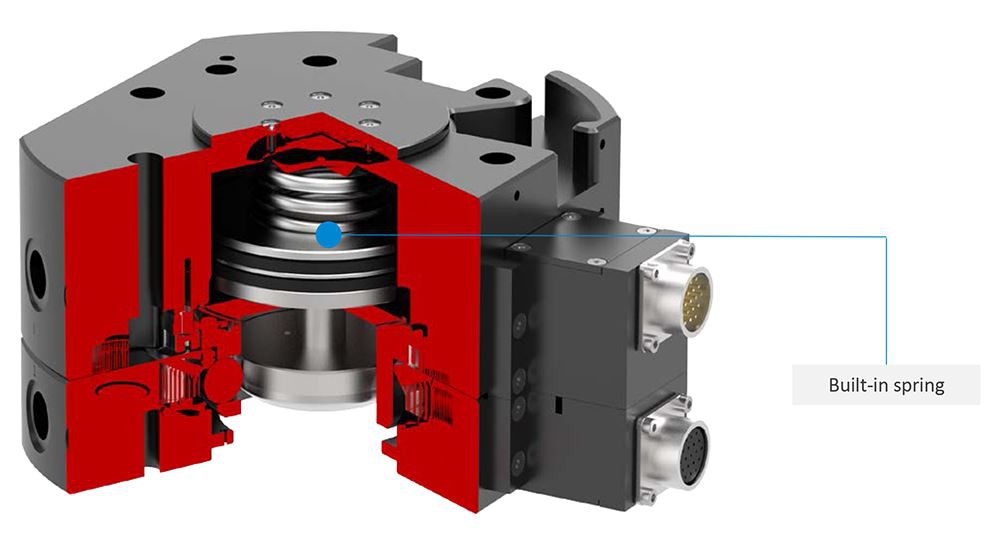

SQC-A quick-change tool changers can be equipped with a built-in spring to prevent falling off when the air is cut off and have double insurance.
● The built-in spring increases the locking force of quick change
● The built-in spring can prevent the tool plate from falling off when the air is cut off, and has double insurance function with the fail-safe locking mechanism

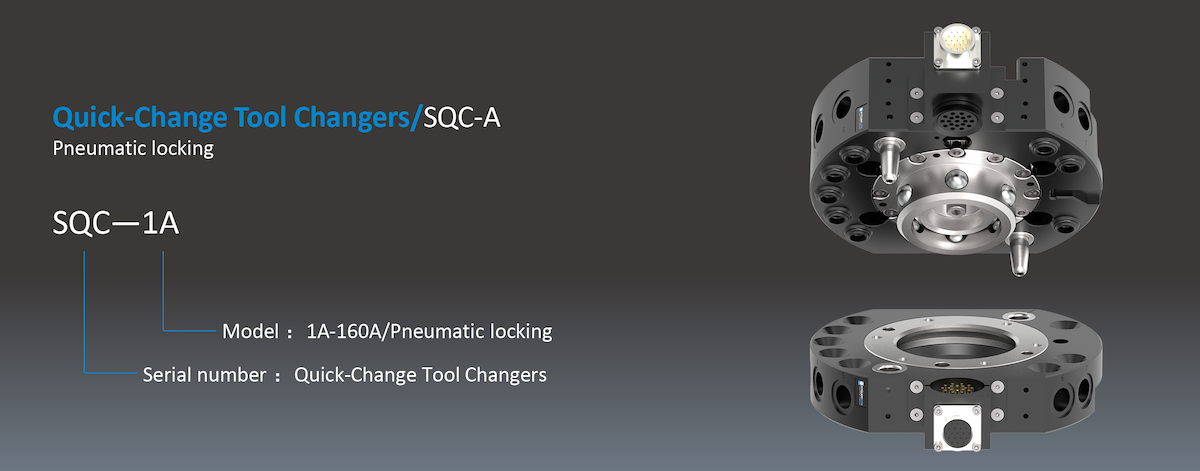

Model and Technical Parameters
Model | Recommended handling weight[Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-1A | 1.4 | 170 | 0.01 | 0.04 | 0.03 | 2.75 | 3.43 | 4-M5 |
| SQC-5A | 8 | 690 | 0.02 | 0.29 | 0.15 | 37 | 50 | 6-M5 |
| SQC-11A | 16 | 1100 | 0.02 | 0.14 | 0.09 | 76 | 105 | 6-M5 |
| SQC-20A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 218 | 12-M5 |
| SQC-21A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 229 | 8-G1/8″ |
| SQC-40A | 50 | 4500 | 0.02 | 1.12 | 0.61 | 673 | 673 | 8-G1/8″ |
| SQC-41A | 50 | 4500 | 0.02 | 1.4 | 0.7 | 473 | 649 | 6-G3/8″ 4-G1/8″ |
| SQC-60A | 75 | 7400 | 0.02 | 1.3 | 0.7 | 586 | 315 | 8-G1/8″ |
| SQC-71A | 79 | 8100 | 0.02 | 1.86 | 1.34 | 1188 | 840 | 8-G1/4″ |
| SQC-76A | 100 | 12000 | 0.02 | 2.3 | 1.4 | 1625 | 2100 | 5-G3/8″ |
| SQC-110A | 150 | 12000 | 0.02 | 4 | 2.1 | 2350 | 2350 | 8-G3/8″ |
| SQC-150A | 200 | 16000 | 0.02 | 4.85 | 2.75 | 4075 | 1840 | 10-G3/8″ |
| SQC-160A | 300 | 31000 | 0.02 | 6.45 | 2.9 | 7165 | 3810 | 5-G3/8″ 4-G1/2″ |
| SQC-300A | 450 | 35000 | 0.02 | 11.86 | 7.34 | 9870 | 8450 | 10-G3/8″ |
