Product details

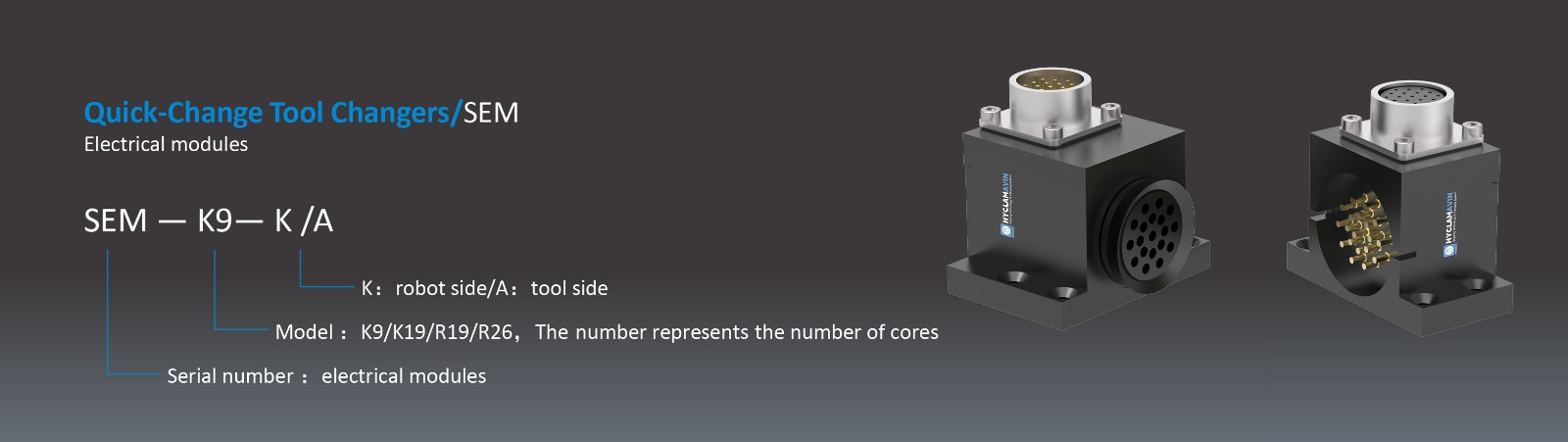

Robotic Tool Changers,Electrical Modules SEM
SEM series Electrical module for Quick-Change Tool Changer, supplying 9, 19, 26 cores etc.electrical modules.
SEM series Electrical module for Quick-Change Tool Changer, supplying 9, 19, 26 cores etc.electrical modules.
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SEM series Electrical module for Quick-Change Tool Changer, supplying 9, 19, 26 cores etc.electrical modules.
Model and Technical Parameters
Model | Number of pin contacts | max.power supply[A] | max.voltage[V] |
| SEM-K9-K | 9 | 2 | 24 |
| SEM-K9-A | 9 | 2 | 24 |
| SEM-K19-K | 19 | 3 | 50 |
| SEM-K19-A | 19 | 3 | 50 |
| SEM-R19-K | 19 | 3 | 50 |
| SEM-R19-A | 19 | 3 | 50 |
| SEM-R26-K | 26 | 3 | 50 |
| SEM-R26-A | 26 | 3 | 50 |
Selection resource
Compare models in the complete selection manual
Review ordering codes, dimensions and technical specifications for all 15 HYCLAMAVIN pneumatic gripper and robot tool changer families.
