Product details

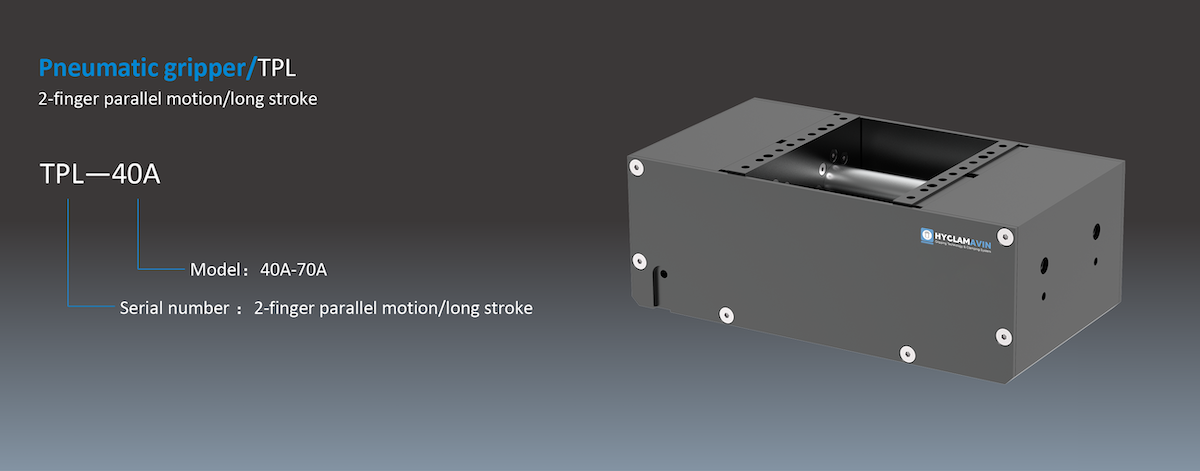

2 Finger Pneumatic Gripper, Long Stroke TPL
Longer stroke to meet the requirements of special working conditions. Unique four-piston structure, smaller volume, higher gripping force.
Longer stroke to meet the requirements of special working conditions
Unique four-piston structure, smaller volume, higher gripping force
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance

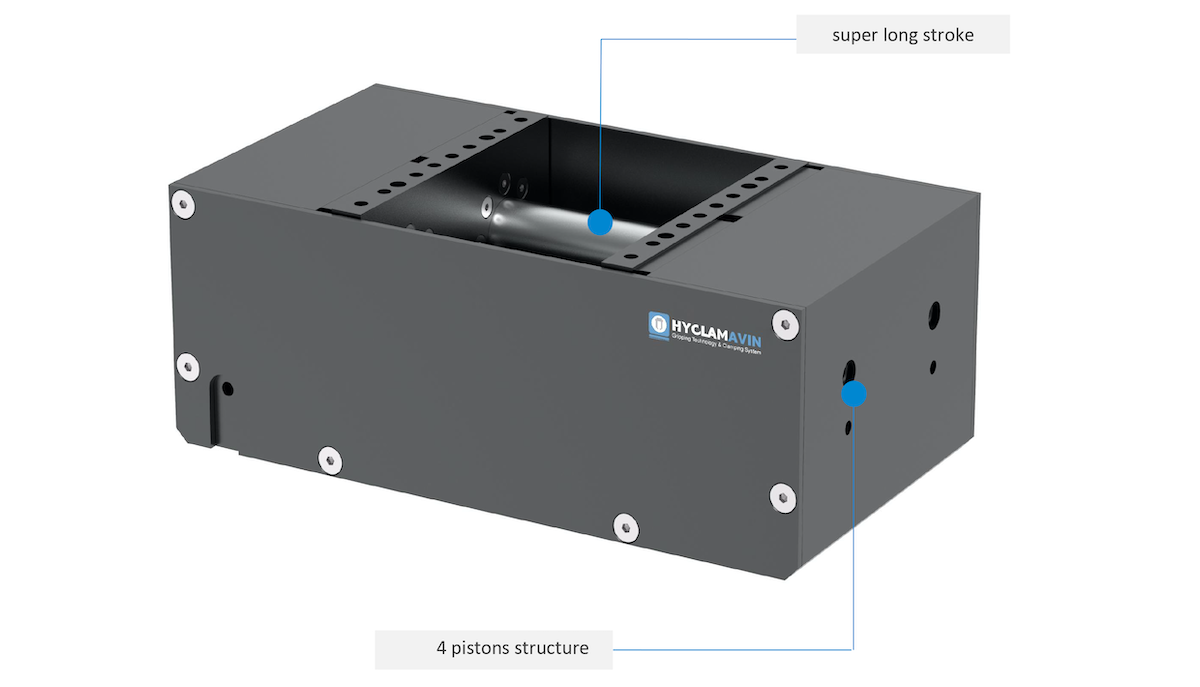

1. The TPL grippers have super long stroke and 4 pistons structure.
● Longer stroke to meet the requirements of special working conditions
● Unique four-piston structure, smaller volume, higher gripping force
Model and Technical Parameters
Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TPL-40A | 40 | 1790/1050 | 4.5 | 8.95 | 0.40/0.40 | 0.02 | 40 |
| TPL-70A | 70 | 4450/2940 | 9.1 | 22.25 | 0.70/0.70 | 0.02 | 40 |
Selection resource
Compare models in the complete selection manual
Review ordering codes, dimensions and technical specifications for all 15 HYCLAMAVIN pneumatic gripper and robot tool changer families.
