2 Finger Pneumatic Parallel Gripper, Long Stroke TWL
The body is made of high strength aluminum alloy, which is lighter and stronger. With six specifications, it is widely used for taking and placing of small parts. with high price-performance ratio. Magnetic switch interface.
2 Finger Pneumatic Parallel Gripper, Long Stroke TWL
The body is made of high strength aluminum alloy, which is lighter and stronger
With six specifications, it is widely used for taking and placing of small parts
with high price-performance ratio
Magnetic switch interface
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Excellent performance

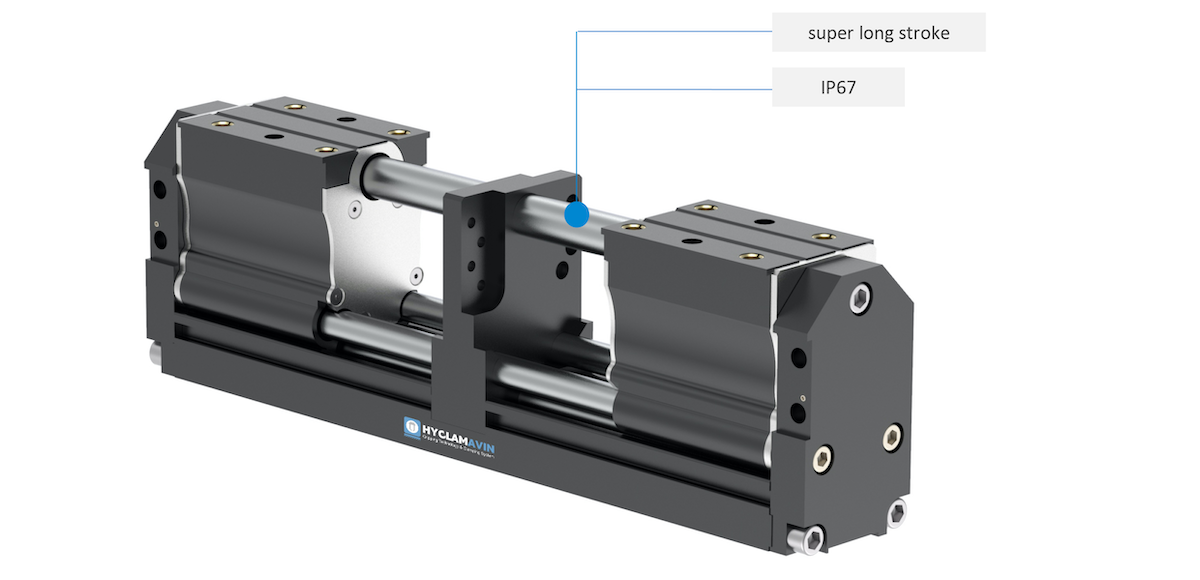

1. The TWL grippers have super long stroke, IP67.
● Meet the needs of large workpiece size and large stroke occasions
● Compact design provides high grip force and large moment capacities with low overall weight
● Rugged build withstands high impact and shock loads
● Double acting for both internal and external gripping
● Three large diameter jaw guides spanning the length of the gripper provide stable jaw travel, long allowable tooling length, and high moment capacities
● Class IP 67

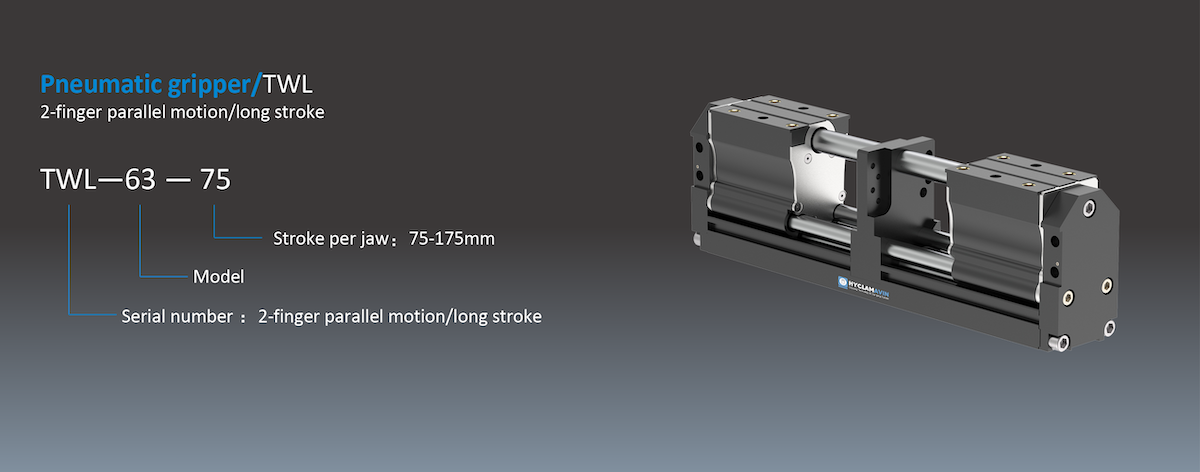

Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Closing/ opening time[s] | Allowable moments Mx[Nm] | Allowable moments My/Mz[Nm] | Allowable forces Fa[N] | Repeat accuracy [mm] | Protect ion class IP |
| TWL-63-75 | 75 | 3100/2790 | 12.6 | 0.28/0.28 | 880 | 720 | 15500 | 0.05 | 64 |
| TWL-63-100 | 100 | 3100/2790 | 15 | 0.36/0.36 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-125 | 125 | 3100/2790 | 17.7 | 0.42/0.42 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-175 | 175 | 3100/2790 | 22.3 | 0.57/0.57 | 980 | 820 | 15500 | 0.05 | 64 |
